Android SDK 提供了 WIFI 开发的相关 API，被保存在 android.net.wifi 和 android.net.wifi.p2p 包下。借助于 Android SDK 提供的相关开发类，可以方便地在 Android 系统的手机上开发基于 WIFI 的应用程序。

实例 WIFIDemo 演示了使用 WIFI 进行连接设备搜索并获取相应信息的过程，运行效果如图 1 所示。

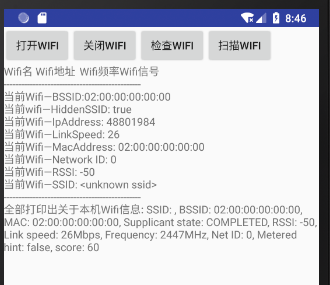

图 1 WIFIDemo 运行结果

实例 WIFIDemo 中所使用的布局文件 main.xml 的内容如下：

<?xml version="1.0" encoding="utf-8"?>
<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/mScrollView"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:scrollbars="vertical">

    <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
        android:layout_width="fill_parent"
        android:layout_height="fill_parent"
        android:orientation="vertical">

        <LinearLayout
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="horizontal">

            <Button
                android:id="@+id/open_bt"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="打开wifi" />

            <Button
                android:id="@+id/close_bt"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="关闭wifi" />

            <Button
                android:id="@+id/check_bt"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="检查wifi" />

            <Button
                android:id="@+id/search_bt"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="扫描wifi" />
        </LinearLayout>

        <TextView
            android:id="@+id/text"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="null" />
    </LinearLayout>
</ScrollView>

实例 WIFIDemo 中 AndroidManifest.xml 文件的代码如下：

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="introduction.android.wifidemo">

    <uses-sdk android:minSdkVersion="10" />

    <uses-permission android:name="android.permission.CHANGE_NETWORK_STATE" />
    <uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
    <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity android:name=".MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>

实例 WIFIDemo 中主 Activity 文件 MainActivity.java 的代码如下：

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

package introduction.android.wifidemo;

import java.util.List;

import android.R.string;
import android.app.Activity;
import android.content.Context;
import android.net.wifi.ScanResult;
import android.net.wifi.WifiInfo;
import android.net.wifi.WifiManager;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.ScrollView;
import android.widget.TextView;
import android.widget.Toast;

public class MainActivity extends Activity {
    private Button open_bt, close_bt, check_bt, search_bt;
    private TextView textView;
    private WifiManager wifiManager;
    private WifiInfo wifiInfo;
    private ScrollView scrollView;
    private List WifiConfiguration;
    private ScanResult scanResult;
    private List<ScanResult> WifiList;
    private StringBuffer stringBuffer = new StringBuffer();

    /**
     * Called when the activity is first created.
     */
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        scrollView = (ScrollView) findViewById(R.id.mScrollView);
        open_bt = (Button) findViewById(R.id.open_bt);
        close_bt = (Button) findViewById(R.id.close_bt);
        check_bt = (Button) findViewById(R.id.check_bt);
        search_bt = (Button) findViewById(R.id.search_bt);
        textView = (TextView) findViewById(R.id.text);

        open_bt.setOnClickListener(new open_btListener());
        close_bt.setOnClickListener(new close_btListener());
        check_bt.setOnClickListener(new check_btListener());
        search_bt.setOnClickListener(new search_btListener());

    }

    class search_btListener implements OnClickListener {
        public void onClick(View v) {
            // TODO Auto-generated method stub
            wifiManager.startScan();
            WifiList = wifiManager.getScanResults();
            wifiInfo = wifiManager.getConnectionInfo();
            if (stringBuffer != null) {
                stringBuffer = new StringBuffer();
            }
            stringBuffer = stringBuffer.append("Wifi名").append(" ").append("Wifi地址").append(" ")
                    .append("Wifi频率").append("").append("Wifi信号")
                    .append("\n");
            if (WifiList != null) {
                for (int i = 0; i < WifiList.size(); i++) {
                    scanResult = WifiList.get(i);
                    stringBuffer = stringBuffer.append(scanResult.SSID).append(" ")
                            .append(scanResult.BSSID).append(" ")
                            .append(scanResult.frequency).append(" ")
                            .append(scanResult.level).append("\n");
                    textView.setText(stringBuffer.toString());
                }

                stringBuffer = stringBuffer.append
                        ("-----------------------------------------------").append("\n");
                textView.setText(stringBuffer.toString());
                stringBuffer = stringBuffer.append("当前Wifi—BSSID").append(":").append(wifiInfo.getBSSID()).append("\n")
                        .append("当前wifi—HiddenSSID").append(": ").append(wifiInfo.getHiddenSSID()).append("\n")
                        .append("当前Wifi—IpAddress").append(": ").append(wifiInfo.getIpAddress()).append("\n")
                        .append("当前Wifi—LinkSpeed").append(": ").append(wifiInfo.getLinkSpeed()).append("\n")
                        .append("当前Wifi—MacAddress").append(": ").append(wifiInfo.getMacAddress()).append("\n")
                        .append("当前Wifi—Network ID").append(": ").append(wifiInfo.getNetworkId()).append("\n")
                        .append("当前Wifi—RSSI").append(": ").append(wifiInfo.getRssi()).append("\n")
                        .append("当前Wifi—SSID").append(": ").append(wifiInfo.getSSID()).append("\n")
                        .append("-----------------------------------------------").append("\n")
                        .append("全部打印出关于本机Wifi信息").append(": ").append
                                (wifiInfo.toString());
                textView.setText(stringBuffer.toString());
            }
            //stringBuffer=stringBuffer.append("-----------------------------------------------").append("\n");
            //textView.setText()
        }
    }

    class check_btListener implements OnClickListener {
        public void onClick(View v) {
            // TODO Auto-generated method stub
            wifiManager = (WifiManager) MainActivity.this
                    .getSystemService(Context.WIFI_SERVICE);
            System.out.println(wifiManager.getWifiState());
            Toast.makeText(MainActivity.this,
                    "当前网卡状态为:" + change(), Toast.LENGTH_SHORT)
                    .show();
        }
    }


    class close_btListener implements OnClickListener {
        public void onClick(View v) {
            // TODO Auto-generated method stub
            wifiManager = (WifiManager) MainActivity.this
                    .getSystemService(Context.WIFI_SERVICE);
            wifiManager.setWifiEnabled(false);
            System.out.println(wifiManager.getWifiState());
            Toast.makeText(MainActivity.this,
                    "当前网卡状态为" + change(), Toast.LENGTH_SHORT)
                    .show();
        }
    }

    class open_btListener implements OnClickListener {
        public void onClick(View v) {
            // TODO Auto-generated method stub
            wifiManager = (WifiManager) MainActivity.this.getSystemService(Context.WIFI_SERVICE);
            wifiManager.setWifiEnabled(true);
            System.out.println(wifiManager.getWifiState());
            Toast.makeText(MainActivity.this,
                    "当前网卡状态为" + change(), Toast.LENGTH_SHORT)
                    .show();
        }
    }

    public String change() {
        String temp = null;
        switch (wifiManager.getWifiState()) {
            case 0:
                temp = "wifi正在关闭ING";
                break;
            case 1:
                temp = "wifi已经关闭";
                break;
            case 2:
                temp = "wifi正在打开ING";
                break;
            case 3:
                temp = "wifi已经打开";
                break;
            default:
                break;
        }
        return temp;
    }
}
